About This

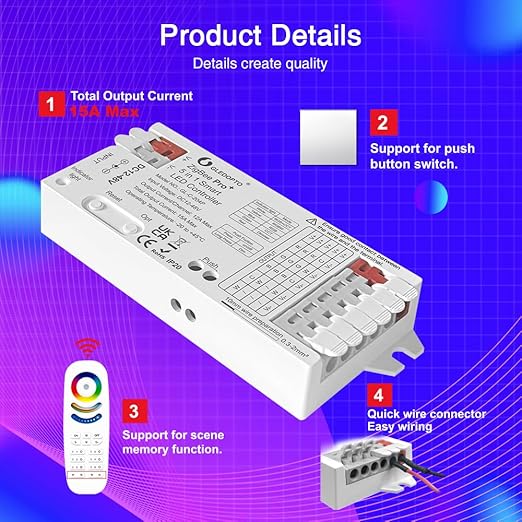

• Total output current 15A Max: The maximum total current is 15A, and the maximum single channel current is 12A. It can connect longer strip lights, such as 10-15 meters
• Suitable for DC12-48V voltage: Upgrade the voltage range to support more LED strips, not just LED strips. As long as the voltage and current match, it can be used, such as panel lights.More convenient and efficient, worry free and effortless

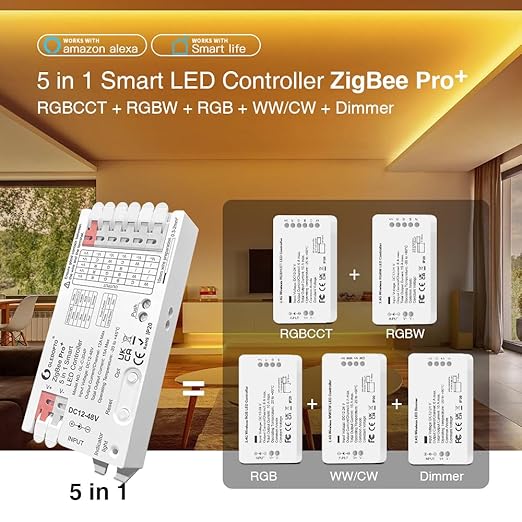

• 5 in 1 Five Modes: There has five modes to connect with led strip: RGBCCT/RGBW/RGB/CCT/Dimmer, and different color indicator correspond to different functions

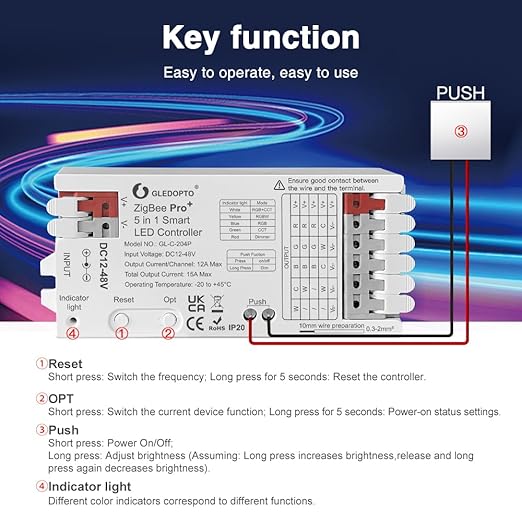

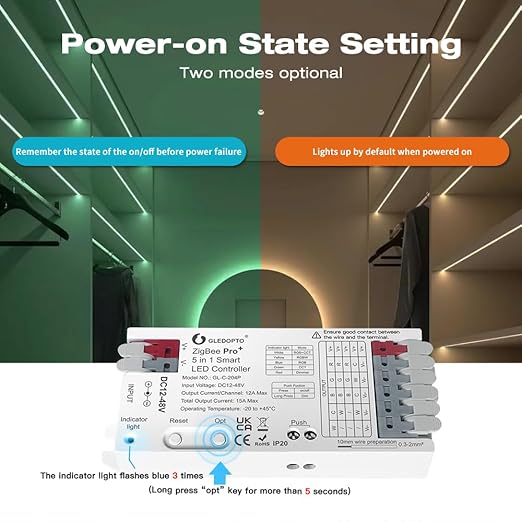

• Power-on Status Settings: Long press "opt" button for more than 5 seconds, the indicator will flash in light blue color and resume to previous color after "off" for 4 seconds to complete power-on status setting.

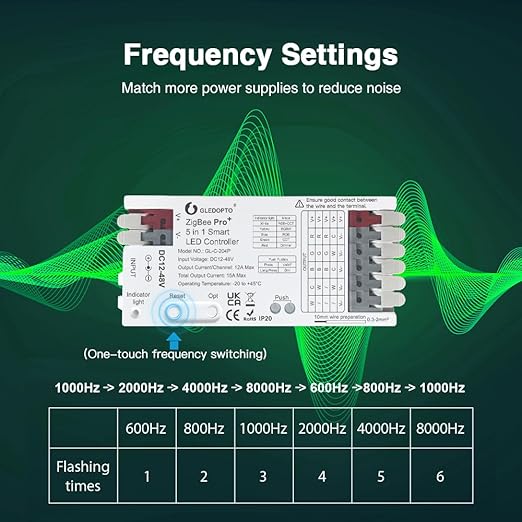

• Selectable Frequency: In order to be applicable to different power supplies, the frequency of device is selectable as 600Hz、800Hz、1000Hz、2000Hz、4000Hz、8000Hz with default frequency 1000HZ.
• Attention: Tuya Zigbee hubs now block third-party devices. Our Zigbee products are currently unable to connect to Tuya hubs. Hold purchases if using Tuya

Overview

• Operation Mode : ON-OFF
• Current Rating : 15 Amps
• Operating Voltage : 24 Volts
• Contact Type : Normally Closed
• Connector Type : Plug In
• Brand : GLEDOPTO
• Switch Type : Push Button

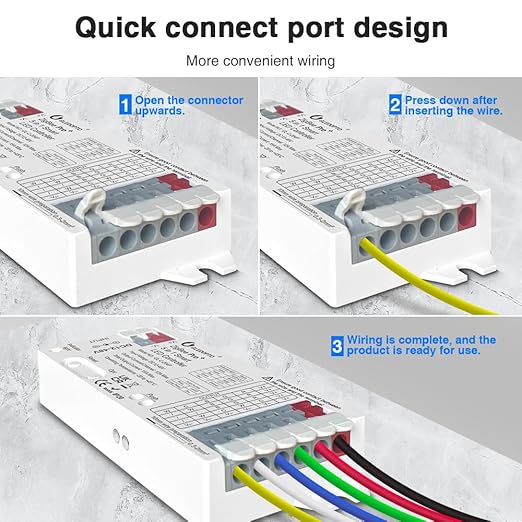

• Terminal : Screw
• Material : Plastic
• Item dimensions L x W x H : 4.25 x 1.77 x 0.71 inches
