About This

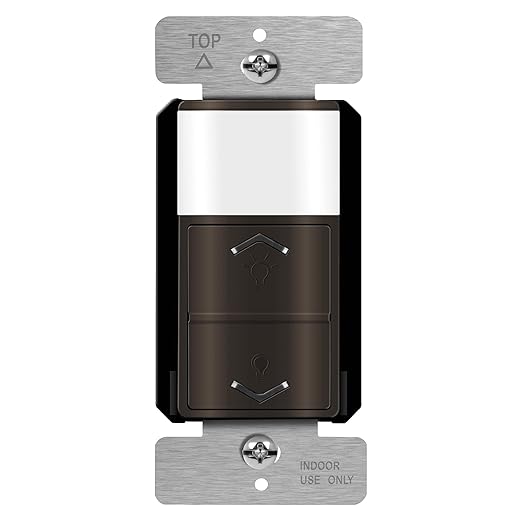

• Motion sensor switch with dimming automatically turns lights ON/OFF and allows you full control of light brightness; for use in residential or commercial areas, such as bathrooms, kitchens, home offices, and more
• Switch uses a Passive Infrared (PIR) sensor to reduce false triggers from unwanted movements; PIR sensor detects motion with 180° field of view to automatically turn lights ON/OFF based on the occupancy or vacancy in a room (up to 1200 sq. ft.)

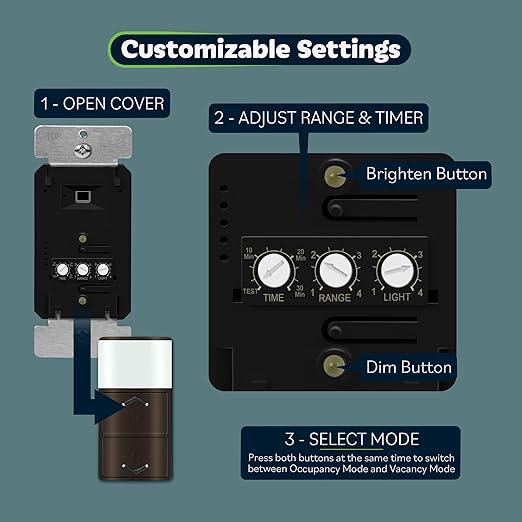

• Dimmer gradually fades and brightens lights by holding the top or bottom buttons; lights will always turn ON to the last-used dim level; adjust the sensor range, ambient light level, and time delay with easy-to-use controls located under the face cover of the device
• Occupancy sensor mode (Auto ON, Auto OFF) and vacancy sensor mode (Manual ON, Auto OFF) allow you to customize the sensor according to your needs; adjustable time delay range from 15 sec (Test) to 30 min

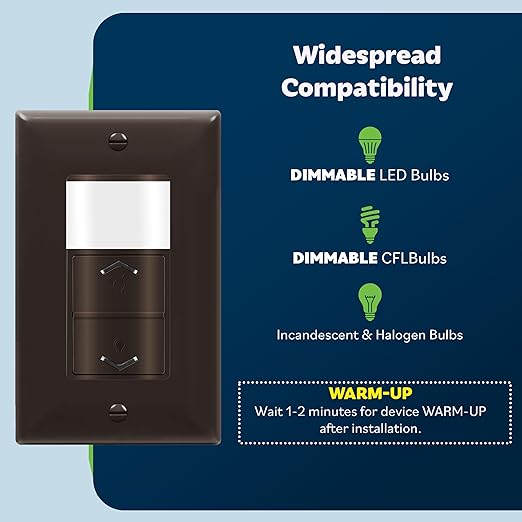

• Brown color; 120VAC, 600W incandescent/halogen, 150W LED/CFL dimmable type only; 30 lux - daylight default light level; operating temperature: 32 - 104°F; single-pole use only; no neutral wire required; UL listed; 1-year warranty

Overview

• Operation Mode : automatic
• Operating Voltage : 120 Volts (AC)
• Contact Type : Normally Open
• Connector Type : Screw Terminals
• Brand : TOPGREENER
• Switch Type : Dimmer Switch, Temperature Switch
• Terminal : Screw
• Circuit Type : 1-way
• Mounting Type : Wall Mount
• Actuator Type : Hinge Lever
