Mill Lathe Digital Readout DRO Display 3 Axis 5µm Precision 250mm+400mm+350mm Linear Scale for Drill EDM (10"+16"+14")

$438.88 USD

Mill Lathe Digital Readout DRO Display 3 Axis 5µm Precision 250mm+400mm+350mm Linear Scale for Drill EDM (10"+16"+14")

$438.88 USD

About This

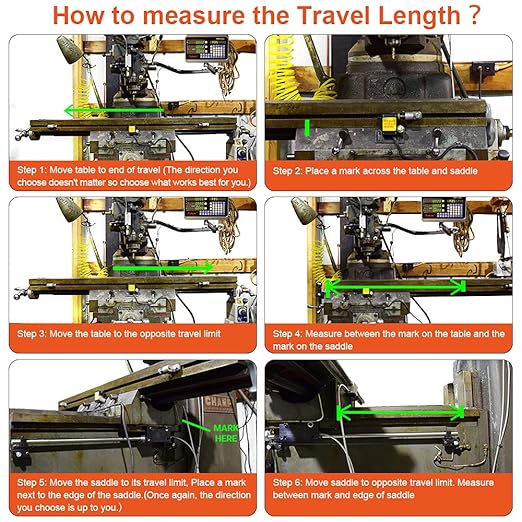

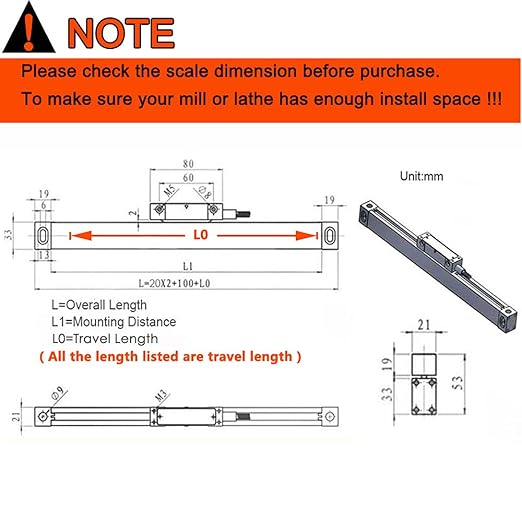

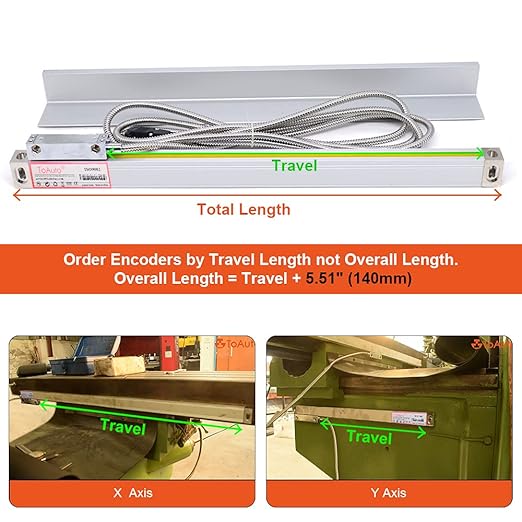

【HIGH PERFORMANCE】3Axis Digital Readout DRO Display 5um,Available Travel Length:250mm+400mm+350mm（10"+16"+14"））.Note: The Total Length =Travel Length+140mm=390mm+540mm+490mm.
【HIGH PRECISE】Glass precision Metrology Grating，Resolution 5um , Accuracy ±5um/ 0.0002" (at 20 deg C);Pulse signal period 20um , Travelling Speed 100m/min，8 bit LED High-definition nixie tube.

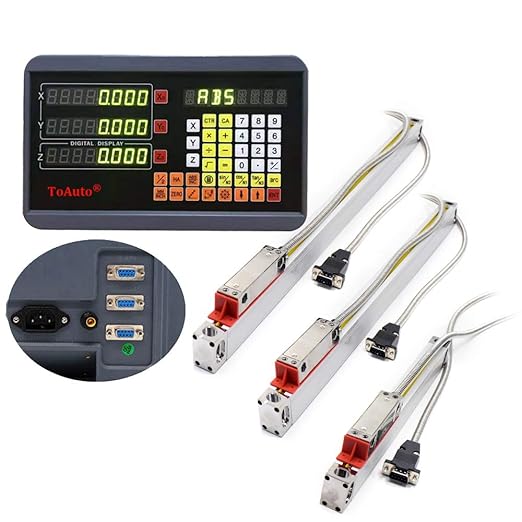

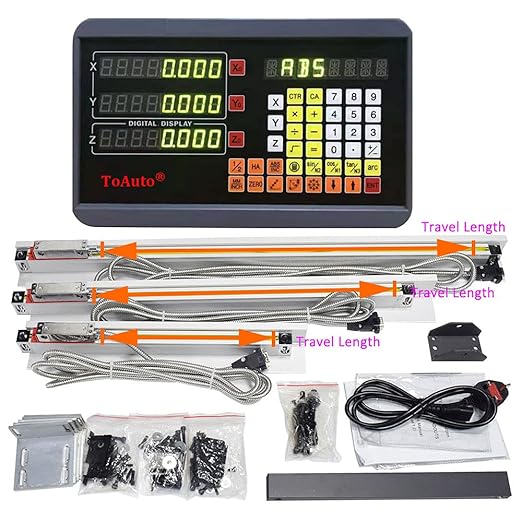

【IDEAL PROFESSIONAL CHOICE】This is a complete kit. You just need to hook the readout system to your machine.It includes one 3 Axis Digital Readout, two scales, protective covers, brackets, etc, an english manual and all the accessories for installation.

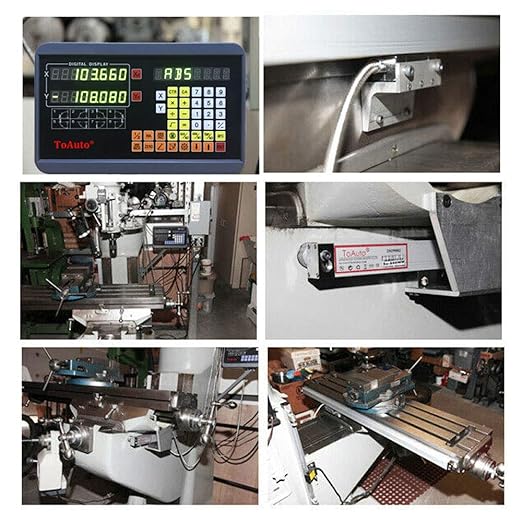

【WIDE APPLICATION】Applicable for milling machine, drilling machine, grinding machine, lathes, profile projector, video measuring machine, position monitoring, coordinate measurement, X-Y-Z working table monitor, mechanical control as well as other area of linear scale and rotary encoder.
All Products from the FASTTOBUY will be provided for lifetime technical support. You will receive 2 separate packages due to the different dimensions of scales and display if you only receive one of them, the other one is maybe on the way to you. Please just wait for a while.

Overview

Brand : FASTTOBUY
Material : Aluminum
Range : 1.5E+3 Millimeters
Measurement Accuracy : 5µm
UPC : 191673173372
