About This

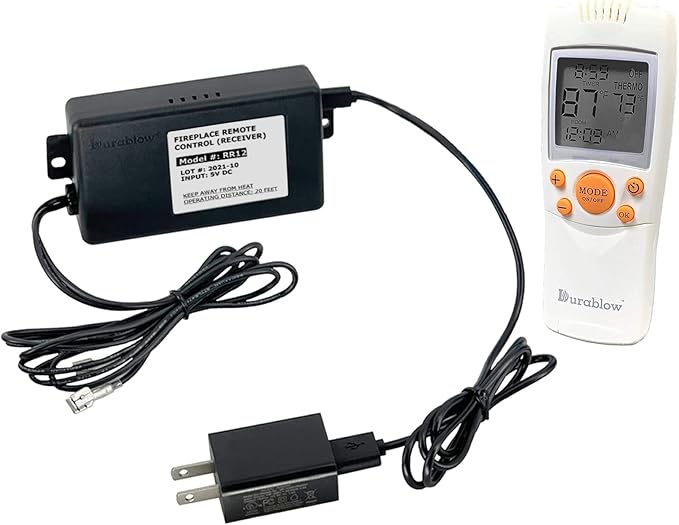

• ★★ ATTENTION: This device is NOT a power supply/Ignitor unit. (No voltage output itself, but passing voltage from your fireplace thermopile for safety reason). Please connect it with power source or circuit in series if using it as a switch. ▼Battery powered R.F. + LCD screen transmitter + 100-240VAC powered receiver box give wireless remote control to a gas heating appliance, such as gas fireplace. ▼Childproof safety lock available. Controllable temperature range is from 45℉ (7℃) to 99℉ (37℃).
• ★ HOW TRANSMITTER WORKS: Thermostat feature in transmitter turns ON/OFF when room temperature changes.It also operates the fireplace with the room temperature swings 1℉, 2℉, or 3℉.▼ The Timer feature operates at options of 15 minutes minimum to 9 hours maximum. ▼ LCD screen for easy reading and setting. ▼The transmitter pairs with its receiver, operates at a range of 20-foot & non-directional RF signal. ▼FCC approved.

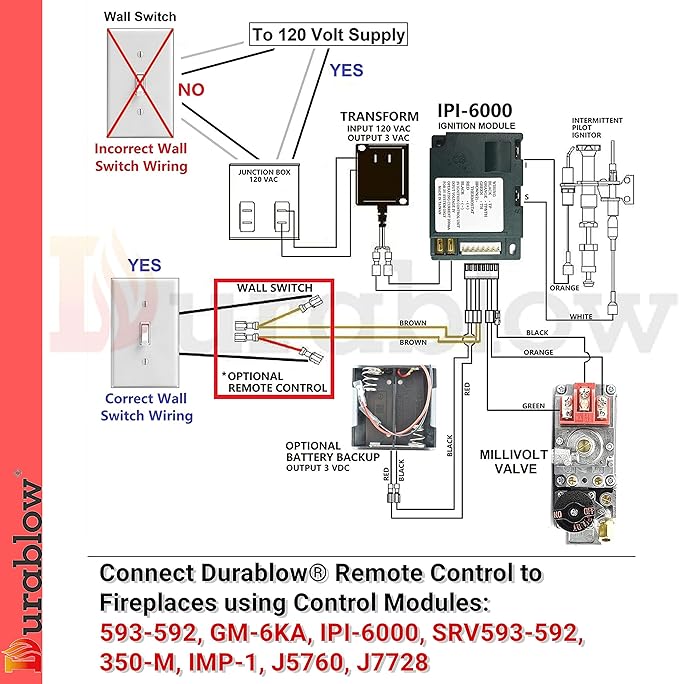

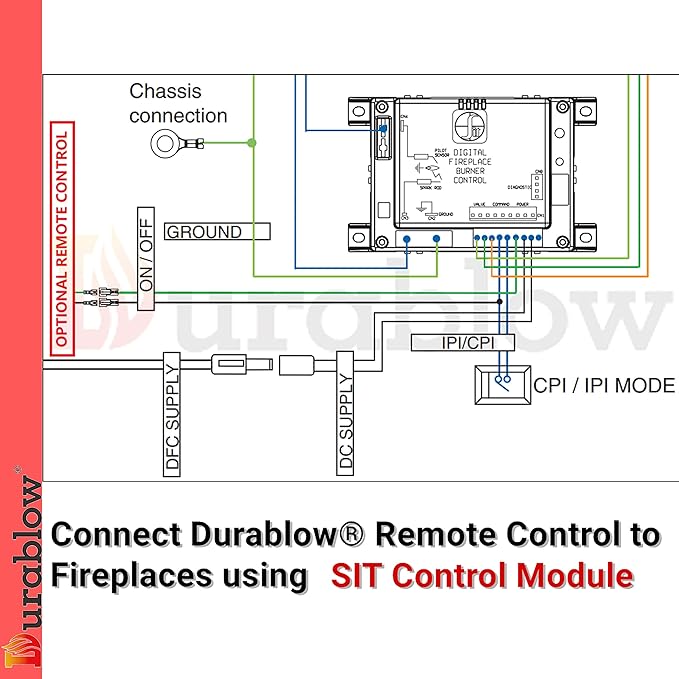

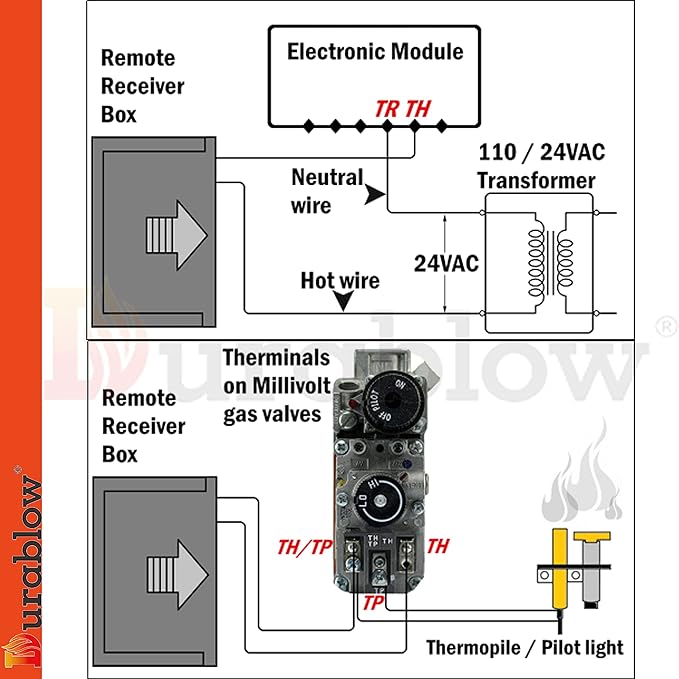

• ★ HOW RECEIVER WORKS: ▼100-240VAC powered (no battery needed in receiver) ▼Easy "LEARN" function for pairing the receiver with the transmitter, includes 18-inch wires with connectors for gas MILLIVOLT valves or electric spark ignition modules.▼ Solid plastic receiver housing, providing proper heat insulation and protection for receiver core elements, kindly refrain from exposing the receiver to temperatures exceeding 130º F.▼ UL approved parts used: Power cord, signal wires, relay.
• ★ WHAT'S IN BOX: Remote transmitter, receiver box, power cord & adapter, and manuals / instructions for your easy installation. ▼ Transmitter operates (2) 1.5V AAA batteries. (batteries are not included) ▼ Strongly recommend Energizer Lithium Batteries. ATTENTION: Any corrosion caused by batteries leak will be regarded as improper use by user. ▼Gas fireplace kits are not available for locking solenoid gas valve systems.
• ★ REPLACES CROSS REFERENCE MODELS: SKY, 9800322, 9800323, 9800324, 9800326, 9800328, 9800329, 9800550, 9800580, 1001-A, 1001, 1001TH, 1001T, 1410T, 1410-A, 1410TH, 3002, 3301, CON, RCK-K, RCK-KS, 5001, 5010, 5301, 5310, 55644 ▼ LEGAL DISCLAIMER: The brand name and model number (if provided) are included solely for cross-reference purposes. All Brands, Trademarks & Model Numbers remain the property of their respective owners.

Overview

• Operation Mode : ON-OFF
• Contact Type : Normally Open
• Connector Type : Spade
• Brand : Durablow
• Switch Type : Remote Control
• Terminal : Spade
• Material : RF Wireless

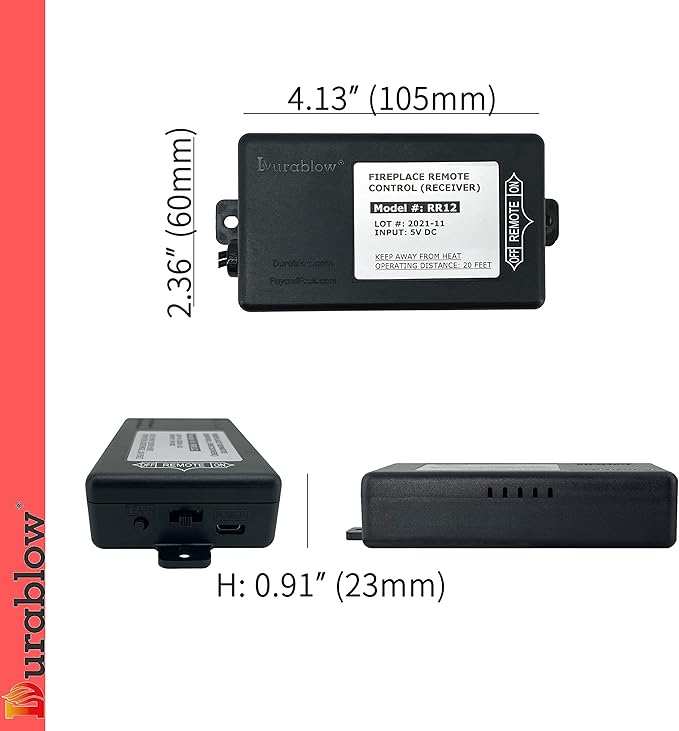

• Item dimensions L x W x H : 5 x 5 x 5 inches
• Circuit Type : 1-way
• Mounting Type : Wall Mount
