About This

• ★★ ATTENTION: This device is NOT a power supply/Ignitor unit. (No voltage output itself, but passing voltage from your fireplace thermopile for safety reason). Please connect it with power source or circuit in series if using it as a switch.▼Durablow battery powered R.F. + Backlit LCD screen transmitter and receiver kits give wireless remote control to a gas heating appliance, such as gas fireplace.▼Childproof safety lock available.▼Controllable temperature range is from 45℉ (7℃) to 99℉ (37℃).

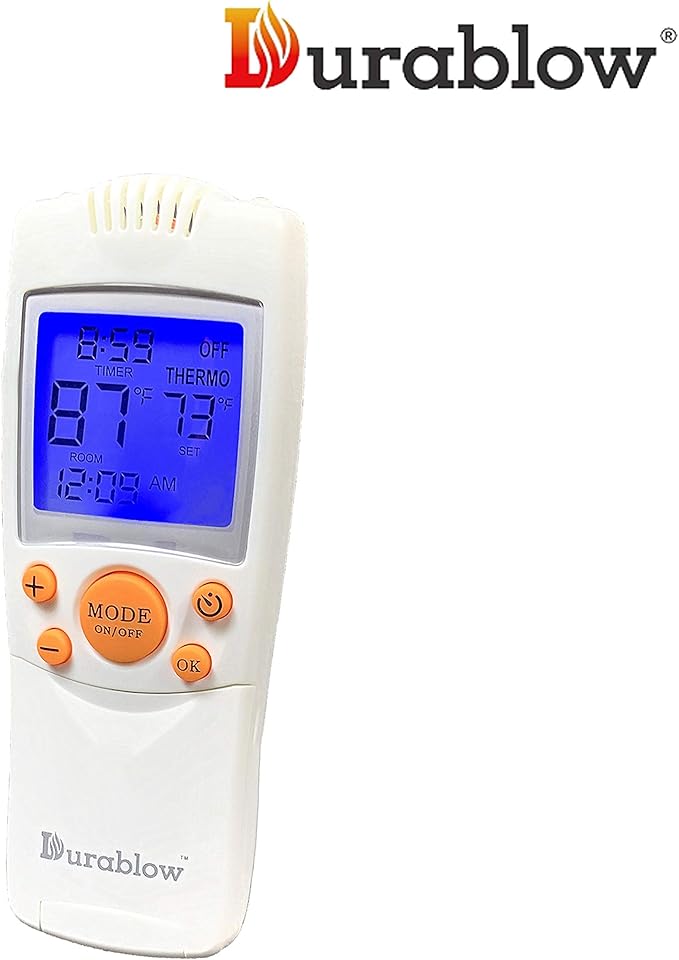

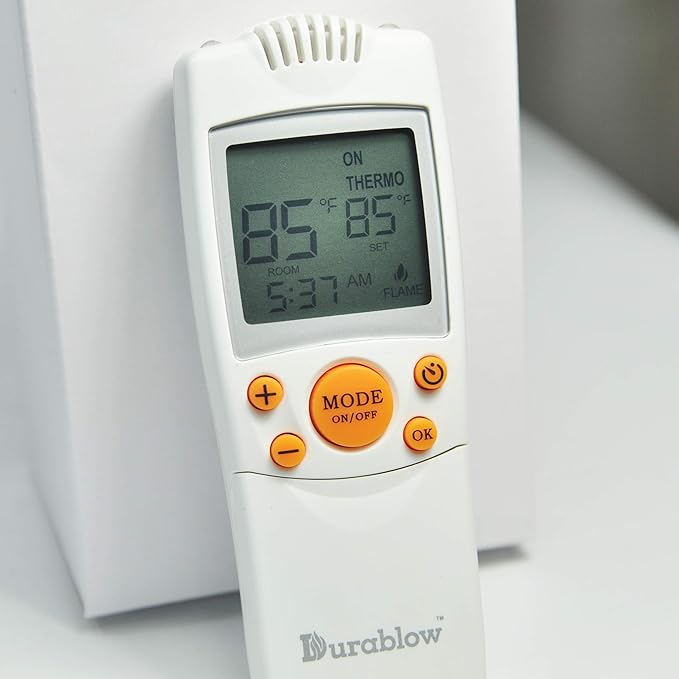

• ★ HOW TRANSMITTER WORKS: Thermostat feature in transmitter turns ON/OFF when the room temperature changes. It also operates the fireplace with room temperature swings 1 °F, 2 °F, or 3 °F. ▼ The timer feature operates at options of 15 minutes minimum to 9 hours maximum. ▼The transmitter pairs with its receiver, operates at a range of 20-foot & non-directional RF signal.▼ Backlit LCD screen for easy reading and setting in dark.▼ FCC approved.

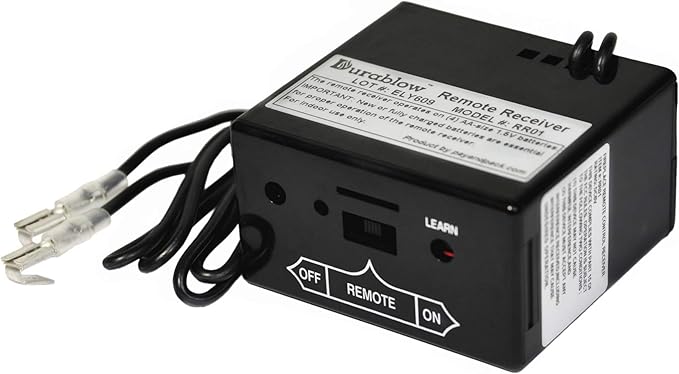

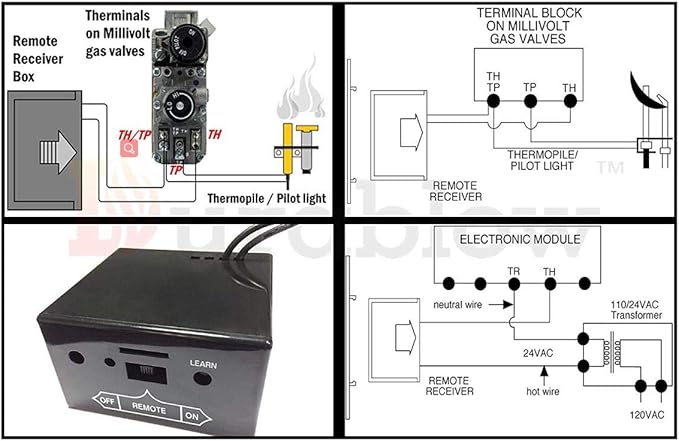

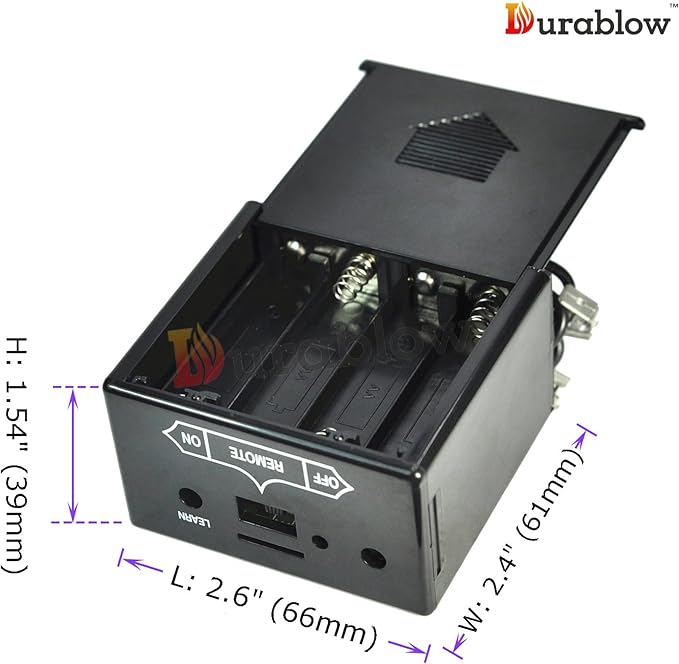

• ★ HOW RECEIVER WORKS: Receiver with LEARN function, snap-on wall plate, and 18-inch wires with connectors to gas MILLIVOLT valve or electric spark ignition module. The receiver should be kept away from temperatures exceeding 130º F. ▼ Receiver BOX DIMENSION: 2.6"x2.4"x1.54". (Please measure your wall outlet box first)
• ★ REPLACES CROSS REFERENCE MODELS: SKY, 9800322, 9800323, 9800324, 9800326, 9800328, 9800329, 9800550, 9800580, 1001-A, 1001, 1001TH, 1001T, 1410T, 1410-A, 1410TH, 3002, 3301, CON, RCK-K, RCK-KS, 5001, 5010, 5301, 5310, 55644, HRC200, RG04-1M, UN3. ▼ LEGAL DISCLAIMER: The brand name and model number (if provided) are included solely for cross-reference purposes. All brands, trademarks, and model numbers remain the property of their respective owners.

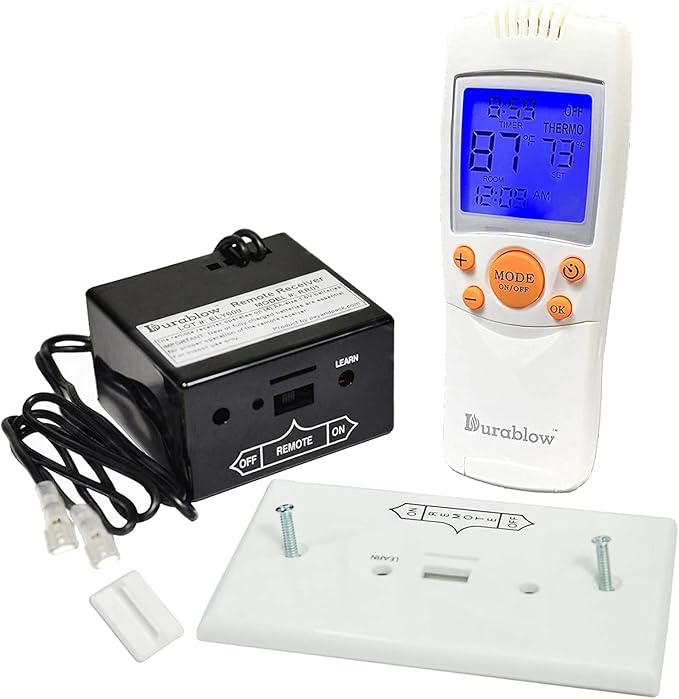

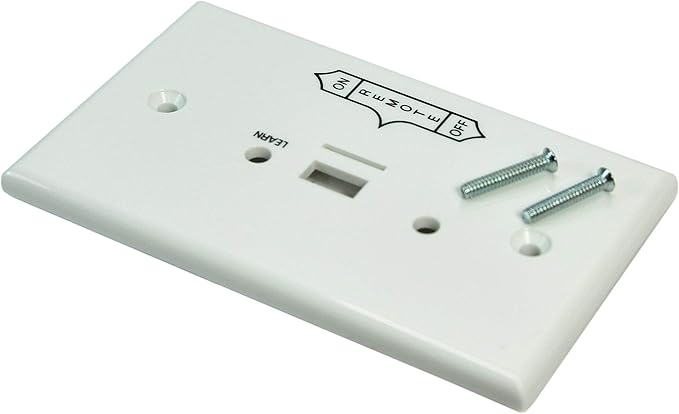

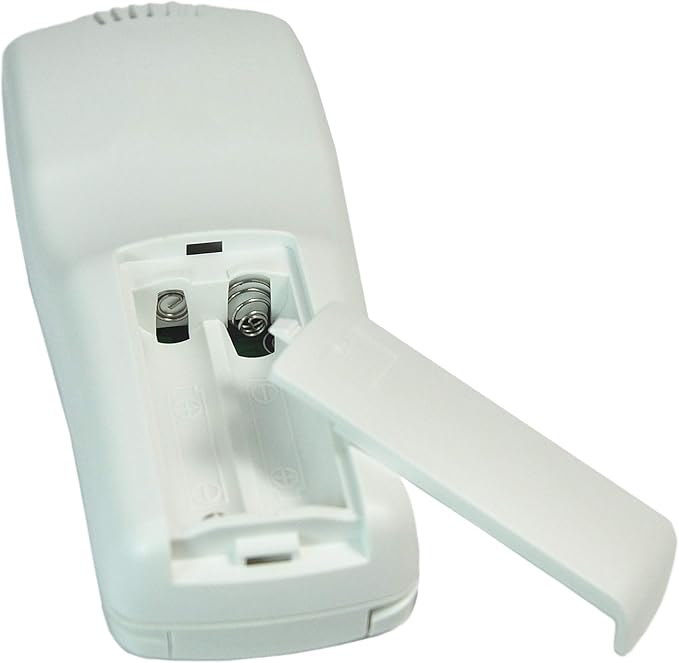

• ★ WHAT'S IN BOX: Remote transmitter, receiver box, wall mount cover plate, screws, slide switch, wires with connectors, and manuals/instructions for your easy installation.▼Transmitter operates (2) 1.5V AAA batteries; Receiver operates 4 (AA) batteries.(batteries are not included) ▼Strongly recommend Energizer Lithium Batteries. ATTENTION: Any corrosion caused by batteries leak will be regarded as improper use by user.▼Gas fireplace kits are not available for locking solenoid gas valve systems.

Overview

• Operation Mode : ON-OFF
• Contact Type : Normally Open
• Connector Type : Screw Terminals
• Brand : Durablow
• Switch Type : Slide
• Terminal : Spade
• Material : RF Wireless
• Item dimensions L x W x H : 1.54 x 2.4 x 2.6 inches
• Circuit Type : 1-way
• Mounting Type : Wall Mount
